Introduction |
| Brand |
Xiaomi |
| Model |

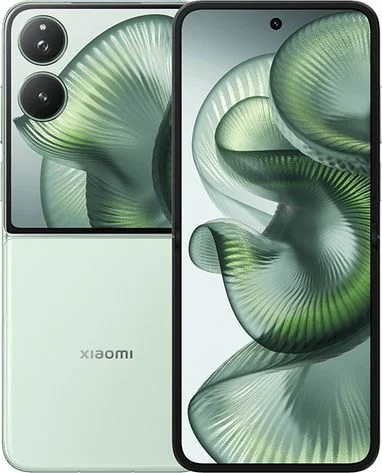

Mi Mix Flip 2 5G Premium Edition Dual SIM TD-LTE CN 1TB 2505APX7BC |
| Released |
2025 Jun |
| Meddelad |
2025 Jun 26 |
| Hardware Designer |
Xiaomi |
| Codename |
Xiaomi Bixi |
| General Extras |
Haptic touch feedback , Tactile touch feedback |
| Device Category |
Smartphone |
|
Physical Attributes |
| Width |
73.8 mm |
| Height |
166.89 mm |
| Depth |
7.57 mm |
| Mått |
2.91x6.57x0.3 inches |
| Mass |
199 g |
|
Software Environment |
| Plattformar |
Android |
| Operating System |
Google Android 15 (Vanilla Ice Cream) |
| Software Extras |
Voice Command , Business card recognition , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Voice Recognition , Face Recognition |
|
Application processor, Chipset |
| CPU Clock |
4320 MHz |
| CPU |
Qualcomm Snapdragon 8 Elite SM8750-AB (Sun), 2024, 64 bit, octa-core, 192 Kbyte I-Cache, 96 Kbyte D-Cache, 12288 Kbyte L2, 3 nm, Qualcomm Adreno 830 GPU |
|
Operative Memory |
| RAM Type |
LPDDR5X SDRAM |
| RAM Capacity (converted) |
16 GiB RAM |
|
Non-volatile Memory |
| Non-volatile Memory Interface |
UFS 4.1 |
| Non-volatile Memory Capacity (converted) |
1000 GB ROM |
|
Visar |
| Display Hole |
1-hole |
| Display Diagonal |
174.24 mm |
| Upplösning |
1224x2912 |
| Horizontal Full Bezel Width |
6.28 mm |
| Display Area Utilization |
88.1% |
| Pixel Density |
460 PPI |
| Display Type |
AM-OLED display |
| Number of Display Scales |
1073.7M |
| Display Refresh Rate |
120 Hz |
| Scratch Resistant Screen |
No |
| Secondary Display Diagonal |
101.85 mm |
| Secondary Display Resolution |
1208x1392 |
| Secondary Display Pixel Density (dot pitch) |
460 PPI |
| Secondary Display Type |
AM-OLED 2nd display |
| Secondary Number of Display Colors/Scales: |
1073.7M |
| Secondary Display Refresh Rate |
120 Hz |
|
Graphical Subsystem |
| Graphical Controller |
Qualcomm Adreno 830 |
|
Audio/Video Interfaces |
| A/V Out |
No |
|
Audio Subsystem |
| Microphone(s) |
stereo |
| Loudspeaker(s) |
stereo |
| Audio Output |
USB Type-C |
|
Cellular Phone |
| Supported Cellular Bands |
GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS800 (B6) , UMTS900 (B8) , UMTS800 (B19) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B17) , LTE800 (B18) , LTE800 (B19) , LTE800 (B20) , LTE850 (B26) , LTE700 (B28) , TD-LTE2000 (B34) , TD-LTE2600 (B38) , TD-LTE1900 (B39) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , TD-LTE3500 (B42) , TD-LTE3600 (B48) , LTE1700/2100 (B66) , NR2100 (N1) , NR1900 (N2) , NR1800 (N3) , NR850 (N5) , NR2600 (N7) , NR900 (N8) , NR 700 (N12) , NR800 (N20) , NR850 (N26) , NR700 (N28) , TD-NR2600 (N38) , TD-NR2300 (N40) , TD-NR2500 (N41) , TD-NR3600 (N48) , NR1700/2100 (N66) , TD-NR3700 (N77) , TD-NR3500 (N78) , NR900 (N81) , NR1800 (N80) , NR700 (N83) , NR2100 (N84) , NR850 (N89) bands |
| Supported Cellular Data Links |
GPRS , GPRS MSC33 , EDGE , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , HSPA+ 42.2 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 300/75 , LTE 300/100 , LTE 450/50 , LTE 450/100 , LTE 600/50 , LTE 600/100 , LTE 1000/100 , NR 1500 , NR 2600 , NR 3700 data links |
| SIM Card Slot |
Nano-SIM (4FF) |
| Complementary Phone Services |
Voice transmission , Voice speaker , Vibrate , Speakerphone , ANC , HD Voice , VoLTE , ViLTE |
|
Secondary Cellular Phone |
| Dual Cellular Network Operation |
Dual standby |
| Sec. Supported Cellular Networks |
GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS800 (B6) , UMTS900 (B8) , UMTS800 (B19) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B17) , LTE800 (B18) , LTE800 (B19) , LTE800 (B20) , LTE850 (B26) , LTE700 (B28) , TD-LTE2000 (B34) , TD-LTE2600 (B38) , TD-LTE1900 (B39) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , TD-LTE3500 (B42) , TD-LTE3600 (B48) , LTE1700/2100 (B66) , NR2100 (N1) , NR1900 (N2) , NR1800 (N3) , NR850 (N5) , NR2600 (N7) , NR900 (N8) , NR 700 (N12) , NR800 (N20) , NR850 (N26) , NR700 (N28) , TD-NR2600 (N38) , TD-NR2300 (N40) , TD-NR2500 (N41) , TD-NR3600 (N48) , NR1700/2100 (N66) , TD-NR3700 (N77) , TD-NR3500 (N78) , NR900 (N81) , NR1800 (N80) , NR700 (N83) , NR2100 (N84) , NR850 (N89) |
| Sec. Supported Cellular Data Links |
GPRS , GPRS MSC33 , EDGE , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , HSPA+ 42.2 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 300/75 , LTE 300/100 , LTE 450/50 , LTE 450/100 , LTE 600/50 , LTE 600/100 , LTE 1000/100 , NR 1500 , NR 2600 , NR 3700 |
| Sec. SIM Card Slot |
Nano-SIM (4FF) |
|
Control Peripherals |
| Touchscreen Type |
Capacitive multi-touch screen |
|
Communication Interfaces |
| Expansion Interfaces |
No |
| USB |
USB 2.0 |
| USB Services |
USB charging , USB fast charging , USB Host , USB OTG 1.3 , USB OTG 2.0 , USB PD , USB PD 2.0 , USB PD 3.0 |
| USB Connector |
USB C reversible |
| Max. Charging Power |
67.0 W charging |
| Bluetooth |
Bluetooth 5.4 |
| Wireless LAN |
802.11a , 802.11b , 802.11g , 802.11n , 802.11ac , 802.11ax , 802.11be |
| Wireless Services |
Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling |
| NFC |
NFC A , NFC B |
| IR |
Yes |
|
Multimedia Broadcast |
| FM Radio Receiver |
No |
|
Satellite Navigation |
| Complementary Satellite Services |
Simultaneous GPS , A-GPS , Dual-frequency GPS , Geotagging , QuickGPS , QZSS , NavIC |
| Supported GLONASS protocol(s) |
L1OF |
| Supported Galileo service(s) |
E1 , E5a |
| Supported BeiDou system (BDS) |
B1c , B1I , B2a BeiDou receiver |
|
Primary Camera System |
| Camera Placement |
Rear |
| Camera Image Sensor |
BSI CMOS |
| Image Sensor Pixel Size |
1.00 micrometer |
| Number of effective pixels |
50.3 MP camera |
| Aperture (W) |
f/1.70 |
| Zoom |
1.0 x optical zoom |
| Focus |
PD AF |
| Min. Equiv. Focal Length |
23 mm |
| Video Recording |
7680x4320 pixel |
| Flash |
single LED |
| Camera Extra Functions |
EIS , EIS (video) , OIS , Pixel unification , HDR photo , HDR video , Red-eye reduction , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection |
| Aux. Camera Image Sensor |
BSI CMOS |
| Aux. Camera Number of Pixels |
50.3 MP aux. cam |
| Aux. Camera Aperture (W) |
f/2.20 |
| Aux. Cam. Min. Equiv. Focal Length |
14 mm |
| Aux. Camera Focus |
PD AF |
| Aux. Camera Extra Functions |
Pixel unification , HDR photo , HDR video , Slow motion video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Intelligent scene detection |
| Aux. 2 Camera Image Sensor |
No |
| Aux. 3 Camera Image Sensor |
No |
| Aux. 4 Camera Image Sensor |
No |
|
Secondary Camera System |
| Secondary Camera Placement |
Front |
| Secondary Camera Sensor |
BSI CMOS |
| Secondary Camera Number of pixels |
32.0 MP sec. cam |
| Secondary Aperture (W) |
f/2.00 |
| Secondary Video Recording |
3840x2160 pixel |
| Secondary Camera Extra Functions |
EIS , EIS (video) , Pixel unification , HDR photo , HDR video , Slow motion video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection |
| Sec. Aux. Cam. Image Sensor |
No |
|
Built-in Sensors |
| Built-in compass |
3D compass |
| Built-in accelerometer |
3D accelerometer |
| Built-in gyroscope |
3D gyro |
| Additional sensors |
Barometer , FP sensor , Hall , L sensor , P sensor , Step counter |
|
Ingress Protection |
| Protection from solid materials |
Yes |
| Protection from liquids |
Yes |
|
Power Supply |
| Batteri |
Li-ion polymer (LiPo) |
| Battery Cells in Parallel |
Yes |
| Nominal Battery Voltage |
3.86 Volts |
| Nominal Battery Capacity |
5165 mAh battery |
| Nominal Battery Energy |
19.94 Wh |
| Wireless Charging |
Qi , Qi reverse |
| Max. Wireless Charging Power |
50.0 W |
|
Geographical Attributes |
| Market Countries |
China |
| Market Regions |
Asia |
| Pris |
7299 |
|
Datasheet Attributes |
| Data Integrity |
Final |
| Added |
2025-09-27 19:45 |
