Introduction |
| Brand |
Huawei |
| Model |

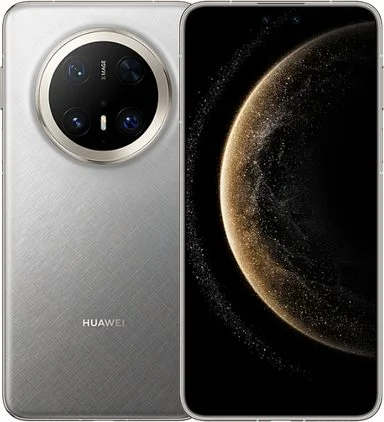

Mate 70 Pro+ Dual SIM TD-LTE CN 1TB PLA-AL10 |
| Released |
2024 Nov |
| Meddelad |
2024 Nov 26 |
| Hardware Designer |
Huawei |
| Manufacturer |
Huawei |
| Codename |
Huawei PillarP |
| General Extras |
Haptic touch feedback |
| Device Category |
Smartphone |
|
Physical Attributes |
| Width |
79.5 mm |
| Height |
164.6 mm |
| Depth |
8.25 mm |
| Mått |
3.13x6.48x0.32 inches |
| Mass |
226 g |
|
Software Environment |
| Plattformar |
Android |
| Operating System |
Huawei HarmonyOS 4.3 |
| Software Extras |
Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Voice Recognition , Face Recognition |
|
Application processor, Chipset |
| CPU Clock |
2500 MHz |
| CPU |
HiSilicon KIRIN9020 4G Hi36C0 GFCV110, 2024, 64 bit, octa-core, 7 nm, HiSilicon Maleoon 920 GPU |
|
Operative Memory |
| RAM Type |
LPDDR5 SDRAM |
| RAM Capacity (converted) |
16 GiB RAM |
|
Non-volatile Memory |
| Non-volatile Memory Interface |
Yes |
| Non-volatile Memory Capacity (converted) |
1000 GB ROM |
|
Visar |
| Display Hole |
1-hole |
| Display Diagonal |
175 mm |
| Upplösning |
1316x2832 |
| Horizontal Full Bezel Width |
5.75 mm |
| Display Area Utilization |
89.4% |
| Pixel Density |
453 PPI |
| Display Type |
AM-OLED display |
| Number of Display Scales |
1073.7M |
| Display Refresh Rate |
120 Hz |
| Scratch Resistant Screen |
Yes |
|
Graphical Subsystem |
| Graphical Controller |
HiSilicon Maleoon 920 |
| GPU Clock |
840 MHz |
|
Audio/Video Interfaces |
| A/V Out |
DisplayPort |
|
Audio Subsystem |
| Microphone(s) |
3 |
| Loudspeaker(s) |
stereo |
| Audio Output |
USB Type-C |
|
Cellular Phone |
| Supported Cellular Bands |
GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS800 (B6) , UMTS900 (B8) , UMTS800 (B19) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE1700/1800 (B9) , LTE700 (B12) , LTE800 (B18) , LTE800 (B19) , LTE800 (B20) , LTE850 (B26) , LTE700 (B28) , TD-LTE2000 (B34) , TD-LTE2600 (B38) , TD-LTE1900 (B39) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , TD-LTE3500 (B42) bands |
| Supported Cellular Data Links |
GPRS , EDGE , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 300/75 , LTE 400/150 , LTE 450/50 , LTE 450/100 , LTE 600/50 , LTE 600/100 , LTE 1000/100 , LTE 1200/200 , LTE 1400/300 , LTE 1600 data links |
| SIM Card Slot |
Nano-SIM (4FF) |
| Complementary Phone Services |
Voice transmission , Voice speaker , Vibrate , Speakerphone , ANC , HD Voice , VoLTE , ViLTE |
|
Secondary Cellular Phone |
| Dual Cellular Network Operation |
Dual standby |
| Sec. Supported Cellular Networks |
GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS800 (B6) , UMTS900 (B8) , UMTS800 (B19) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE1700/1800 (B9) , LTE700 (B12) , LTE800 (B18) , LTE800 (B19) , LTE800 (B20) , LTE850 (B26) , LTE700 (B28) , TD-LTE2000 (B34) , TD-LTE2600 (B38) , TD-LTE1900 (B39) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , TD-LTE3500 (B42) |
| Sec. Supported Cellular Data Links |
GPRS , EDGE , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 300/75 , LTE 400/150 , LTE 450/50 , LTE 450/100 , LTE 600/50 , LTE 600/100 , LTE 1000/100 , LTE 1200/200 , LTE 1400/300 , LTE 1600 |
| Sec. SIM Card Slot |
Nano-SIM (4FF) |
|
Control Peripherals |
| Touchscreen Type |
Capacitive multi-touch screen |
|
Communication Interfaces |
| Expansion Interfaces |
No |
| USB |
USB 3.0 / 3.1 Gen 1 / 3.2 Gen 1x1 |
| USB Services |
USB charging , USB fast charging , USB Host , USB OTG 1.3 , USB OTG 2.0 , USB PD , USB PD 2.0 , USB PD 3.0 , USB PD 3.1 |
| USB Connector |
USB C reversible |
| Max. Charging Power |
100.0 W charging |
| Bluetooth |
Bluetooth 5.2 |
| Wireless LAN |
802.11a , 802.11b , 802.11g , 802.11n , 802.11ac , 802.11ax |
| Wireless Services |
Miracast , Wi-Fi Direct , Wi-Fi Tethering , Wi-Fi Calling |
| NFC |
NFC A , NFC B |
| IR |
Yes |
|
Multimedia Broadcast |
| FM Radio Receiver |
No |
|
Satellite Navigation |
| Complementary Satellite Services |
Simultaneous GPS , A-GPS , Dual-frequency GPS , Geotagging , QuickGPS , QZSS , NavIC |
| Supported GLONASS protocol(s) |
L1OF |
| Supported Galileo service(s) |
E1 , E5a , E5b |
| Supported BeiDou system (BDS) |
B1c , B1I , B2a , B2b , BDS Voice Call , BDS SMS BeiDou receiver |
|
Primary Camera System |
| Camera Placement |
Rear |
| Camera Image Sensor |
BSI CMOS |
| Number of effective pixels |
50.3 MP camera |
| Aperture (W) |
f/1.40 |
| Aperture (T) |
f/4.00 |
| Zoom |
3.8 x optical zoom |
| Focus |
CD AF , PD AF , Laser AF |
| Min. Equiv. Focal Length |
24.5 mm |
| Video Recording |
3840x2160 pixel |
| Flash |
dual LED |
| Camera Extra Functions |
EIS , EIS (video) , OIS , OIS (video) , Pixel unification , HDR photo , HDR video , Red-eye reduction , Slow motion video , Burst mode , Refocus , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection |
| Aux. Camera Image Sensor |
BSI CMOS |
| Aux. Camera Number of Pixels |
39.9 MP aux. cam |
| Aux. Camera Aperture (W) |
f/2.20 |
| Aux. Cam. Min. Equiv. Focal Length |
13 mm |
| Aux. Camera Focus |
PD AF |
| Aux. Camera Extra Functions |
Pixel unification , HDR photo , HDR video , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection |
| Aux. 2 Camera Image Sensor |
BSI CMOS |
| Aux. 2 Camera Number of Pixels |
48.0 MP aux. 2 cam |
| Aux. 2 Camera Aperture (W) |
f/2.10 |
| Aux. 2 Cam. Min. Equiv. Focal Length |
92.5 mm |
| Aux. 3 Camera Image Sensor |
Mono CMOS |
| Aux. 3 Camera Number of Pixels |
1.6 MP aux. 3 cam |
| Aux. 4 Camera Image Sensor |
No |
|
Secondary Camera System |
| Secondary Camera Placement |
Front |
| Secondary Camera Sensor |
BSI CMOS |
| Secondary Camera Number of pixels |
13.0 MP sec. cam |
| Secondary Aperture (W) |
f/2.40 |
| Secondary Video Recording |
3840x2160 pixel |
| Secondary Camera Extra Functions |
EIS , EIS (video) , HDR photo , HDR video , Slow motion video , Burst mode , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection |
| Sec. Aux. Cam. Image Sensor |
Mono CMOS |
|
Built-in Sensors |
| Built-in compass |
Yes |
| Built-in accelerometer |
3D accelerometer |
| Built-in gyroscope |
3D gyro |
| Additional sensors |
Altimeter , Barometer , FP sensor , Gesture sensor , Hall , L sensor , P sensor , Step counter |
|
Ingress Protection |
| Protection from solid materials |
6 Totally protected from dust |
| Protection from liquids |
9 Protected against high temperature high pressure spray downs |
| Immersion into liquids (depth limit) |
600 cm |
| Immersion into liquids time limit |
30 min |
|
Power Supply |
| Batteri |
Li-ion (Si-C) |
| Nominal Battery Capacity |
5700 mAh battery |
| Wireless Charging |
Qi , Qi reverse |
| Max. Wireless Charging Power |
80.0 W |
|
Geographical Attributes |
| Market Countries |
China |
| Market Regions |
Asia |
| Pris |
9499 |
|
Datasheet Attributes |
| Data Integrity |
Preliminary |
| Added |
2026-03-21 19:07 |
